The R30 Sheet Press converts granulated thermoplastic material into a usable form using heat and pressure. As standard, the formed article is a flat plastic sheet, which can typically be used for vacuum forming, laser cutting, line bending etc.  There are also tools available for making shaped parts, for example Frisbees, on the machine.



A removable material cassette is loaded with granules of the material to be pressed. For best results the granules are sprinkled uniformly over the base of the cassette. The cassette is then loaded into the R30 sheet press, and clamped firmly between two temperature controlled aluminium hotplates. The heat and pressure causes the material granules to soften and fuse.



At the end of the pressing cycle, the material cassette is unloaded and allowed to cool. The formed sheet of material can then be removed and used. Optional stands and cooling fan sets are available for the R30.



As standard, the R30 produces a sheet size that is suitable for use on our 725FLB Vacuum Former. Other sizes of material can be produced using separately available heating trays.

The R30T3 produces a sheet of 457 x 305mm, while the R30T1 produces a sheet of 305 x 229mm (suitable for our 1210 Vacuum Former).

Voltage

Max Current

Standard Sheet Size

Maximum Sheet Size

Sheet Thickness

Pressing Time (excluding cooling)



Dimensions

Weight

230V 50-60Hz

8 Amps

457 x 254mm

457 x 305mm

2-3mm

10 minutes

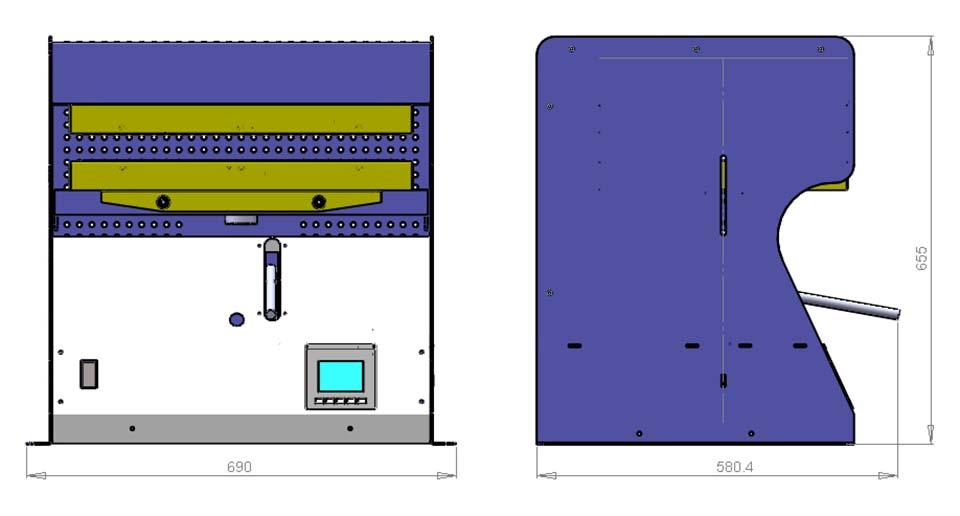

690 x 581 x 655mm

92kg

R30S.  Stand with lockable castors
