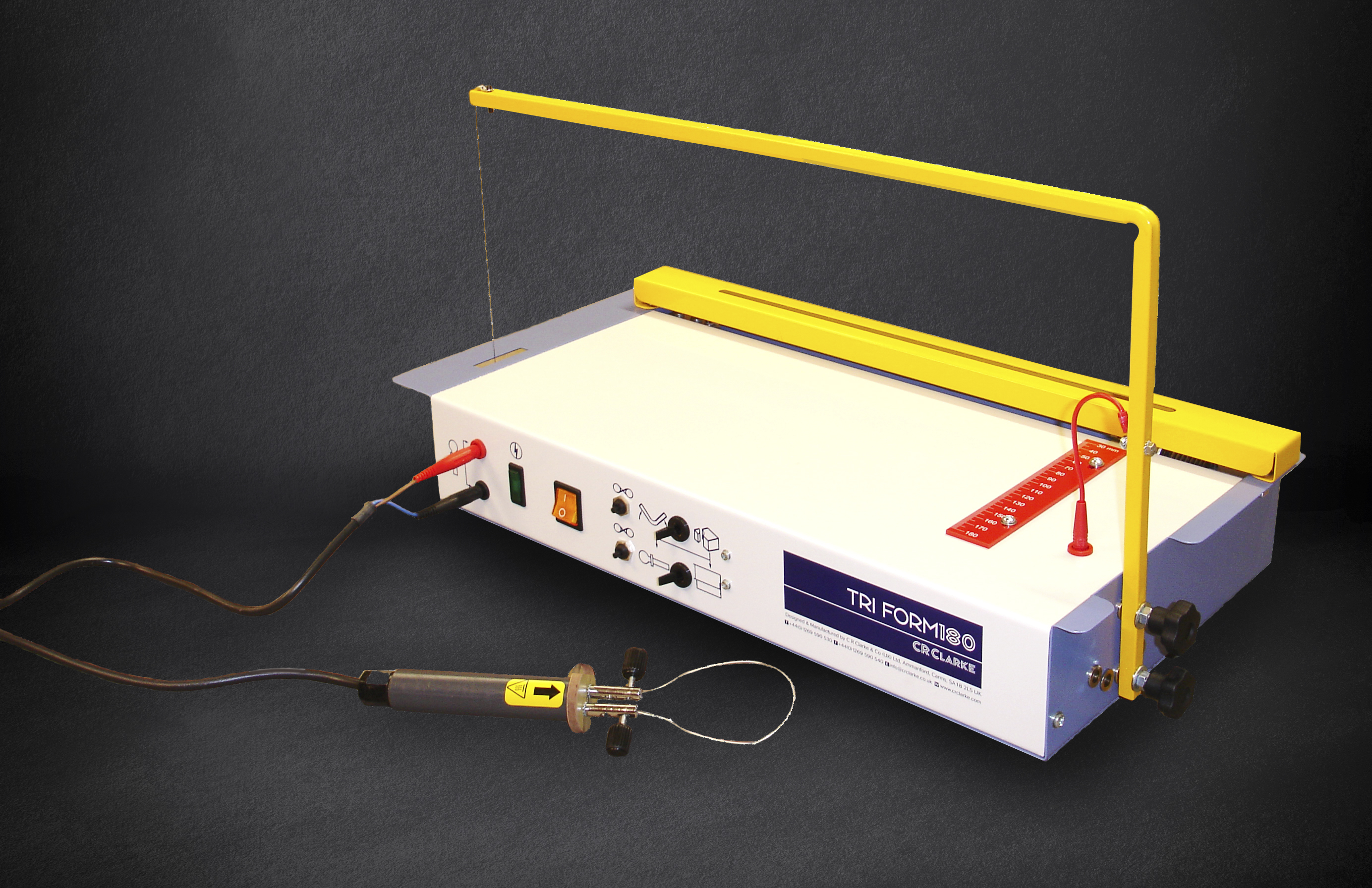

The 180 offers a unique combination of a Hot Wire Strip Heater and a Hot Wire Sculptor, which is ideal where space is at a premium.



The guarded Hot Wire allows materials up to 4mm in thickness and 300mm in length to be folded.  The tensioned hot wire bow enables the cutting of expanded polystyrene up to 150mm in thickness.  There is also a hand-held sculptor tool for freehand cutting and sculpting.



Power to the heating wires is controlled by a foot pedal, ensuring that heaters are only energised when needed.  The Hot Wire cutting functions should always be used in a well-ventilated area, but the foot pedal removes the need for dedicated extraction.

Voltage

Max Current

Cutting Wire Length

Throat Depth

Wire Temperature

Working Length (Strip Heater)

Maximum Material Thickness (Strip Heater)



Dimensions

Weight

230 or 115V 50-60Hz

0.2 Amps (230V), 0.4 Amps (115V)

180mm

500mm

Two Settings via Panel Mounted Switch

300mm

4mm



810 x 570 x 160mm

10kg
